Description

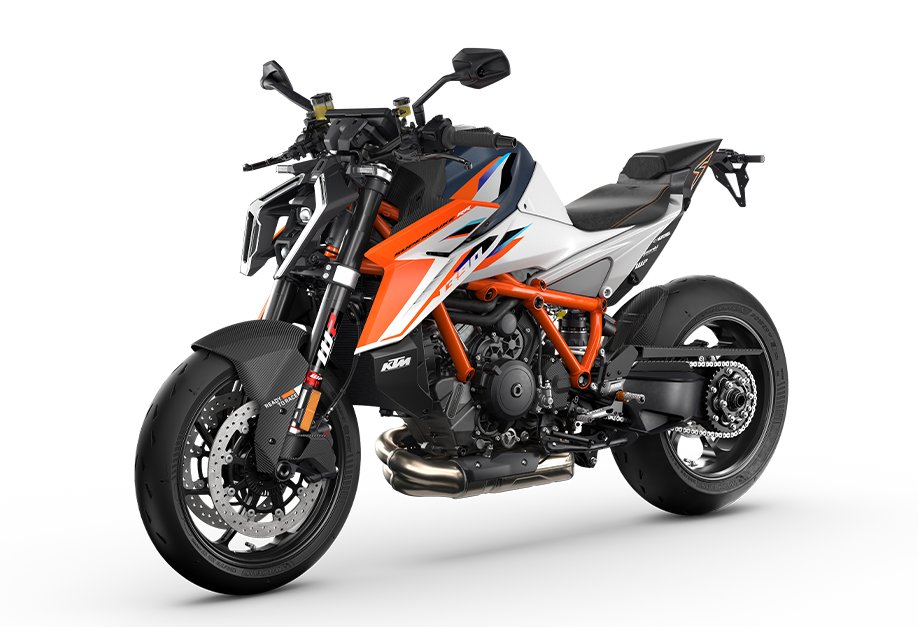

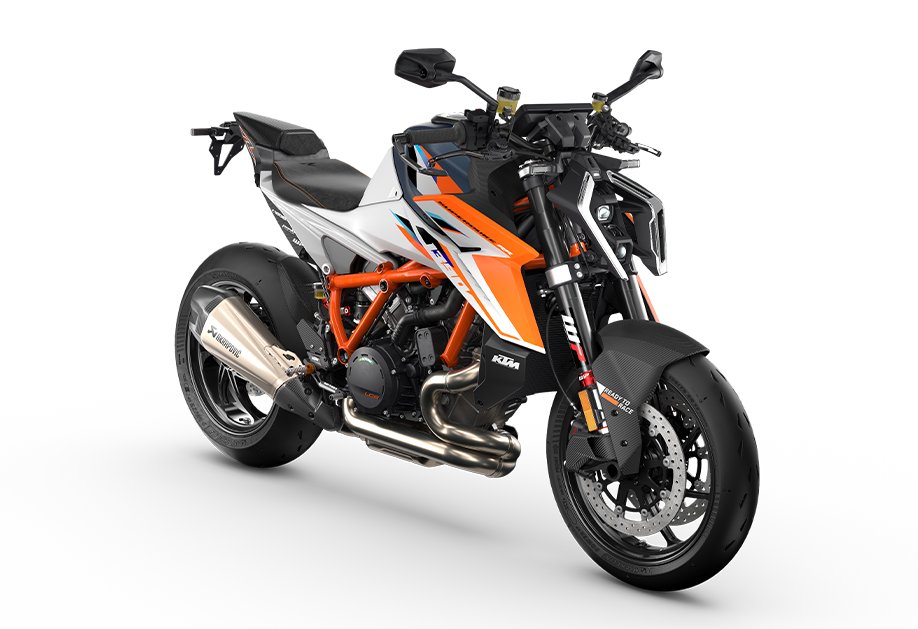

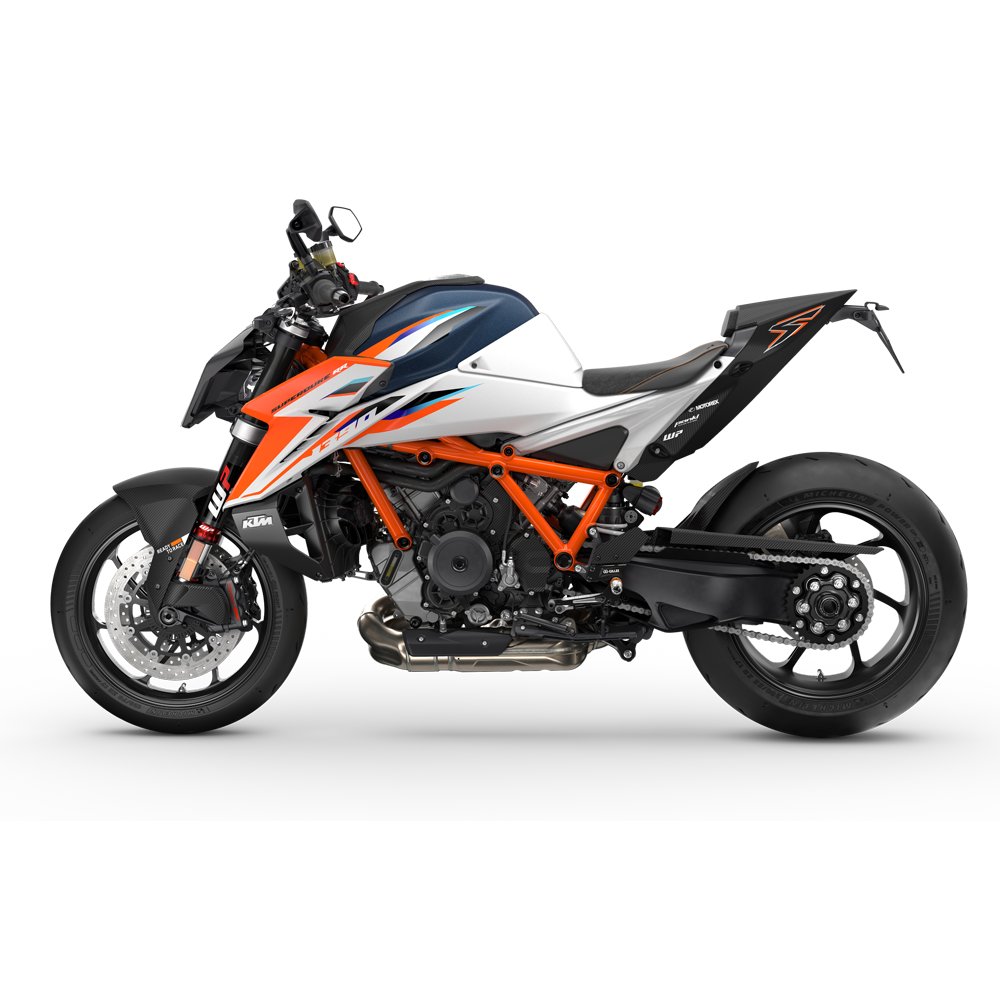

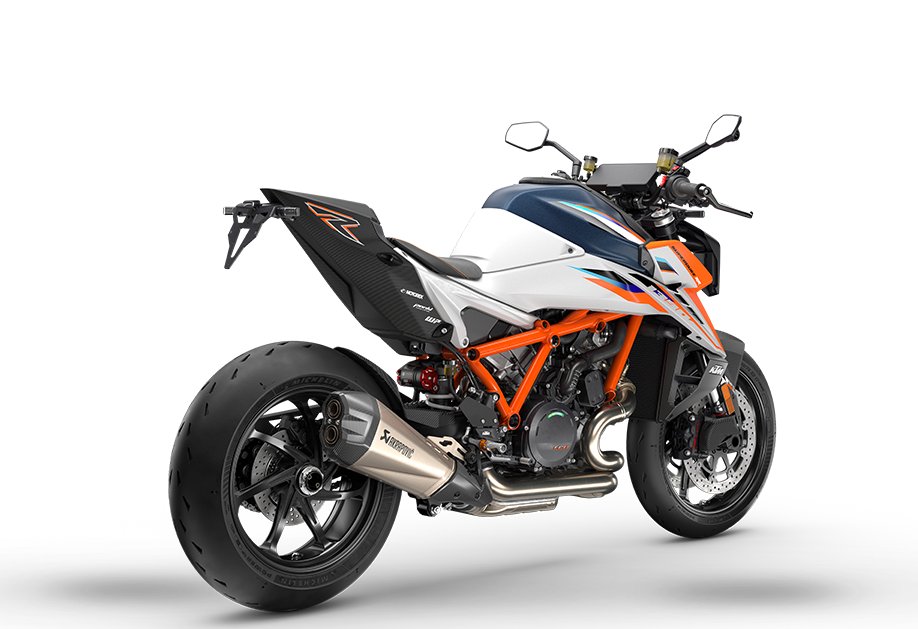

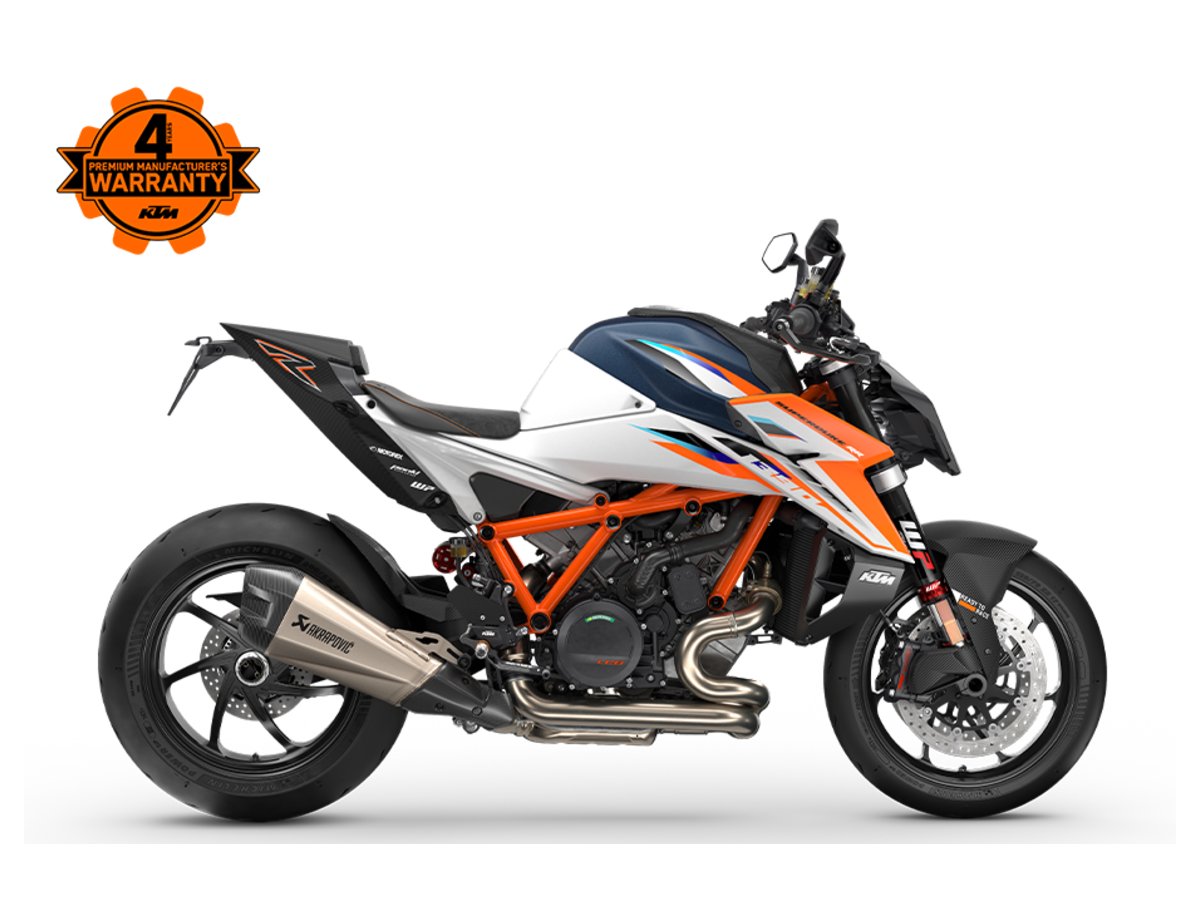

Want the recipe to pure, unadulterated NAKED performance? Take a fearsome 1350cc V-twin powerplant with CAMSHIFT technology. Add in a sublime chassis with lightweight 7-spoke forged wheels wrapped in Michelin Power GP Hypersport rubber for agility. Then, reach for the highest shelf, and add a dash of MotoGP-derived WP PRO COMPONENTS, with freshly squeezed BREMBO brakes. Lastly, fold it all together with a full set of carbon parts for added exclusivity, and serve with the most complete electronics pack ever seen on a KTM. The result? Say hello to the KTM 1390 SUPER DUKE RR - a single seater with full fury just waiting to be unleashed.

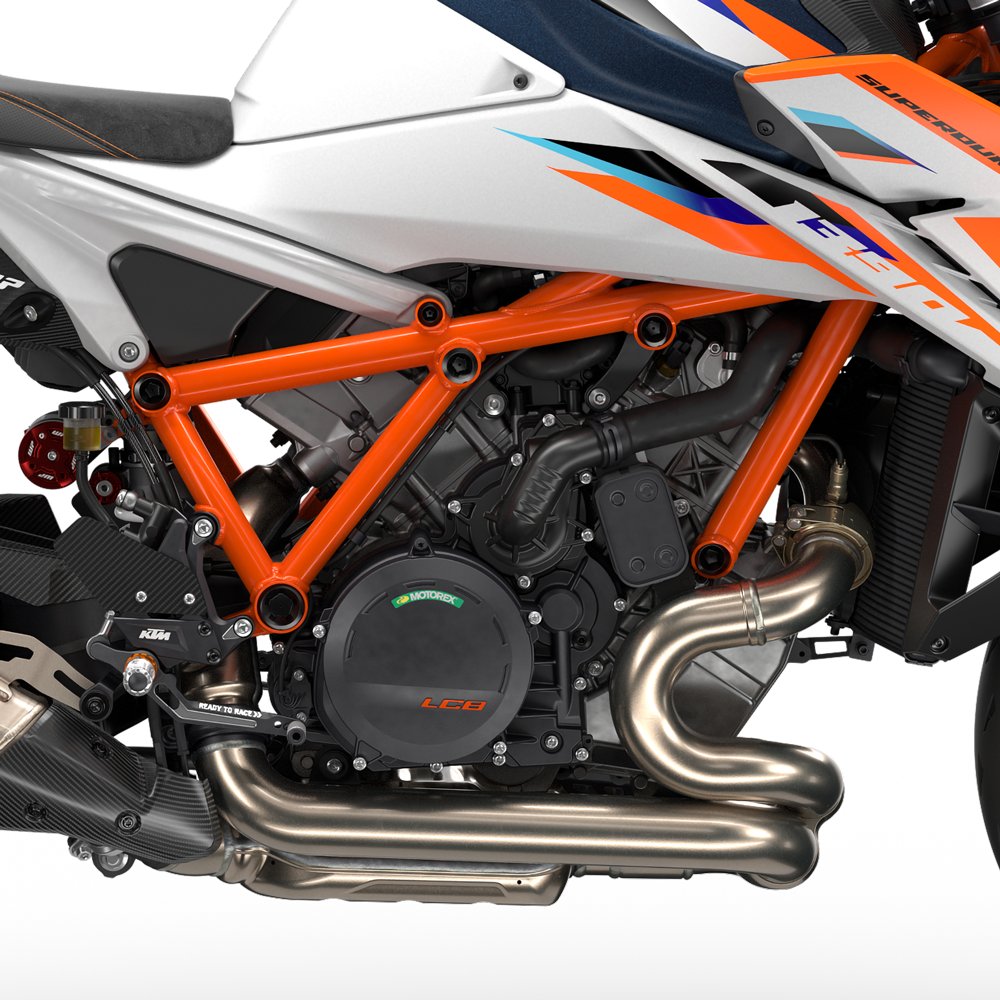

Engine
- Design2-cylinder, 4-stroke, V 75°
- Displacement1350 cm³
- Power190 PS
- Torque145 Nm
- Transmission6-speed
- CO2 emissions139 g/km
- CoolingLiquid cooled with water/oil heat exchanger
- Engine cylinderTwin cylinder
- EMSKeihin EMS with RBW, twin ignition
- Engine oilMotorex, SAE 10W-50
- Engine stroke4-Stroke
- Drive typeCombustion
- SilencerStainless steel primary and Titanium secondary silencer with two catalytic converters
Chassis
- Brake disc diameters (front/rear)320 / 240 mm
- Front brake disc diameter320 mm
- Front brake disc diameter12.6 inch
- Rear brake disc diameter240 mm
- Rear brake disc diameter9.45 inch
- Front brake2 x Brembo HyPure Sport Monobloc four piston, radially mounted caliper, brake disc
- Rear brakeBrembo twin-piston fixed calliper, brake disc
- Chain525 X-Ring
- Frame designChromium-Molybdenum steel trellis frame, powder coated
- Steering head angle65.3 °
- Rear subframe designCast aluminium/Carbon
- Trail101 mm
- Wheelbase1.491 mm
