Beschrijving

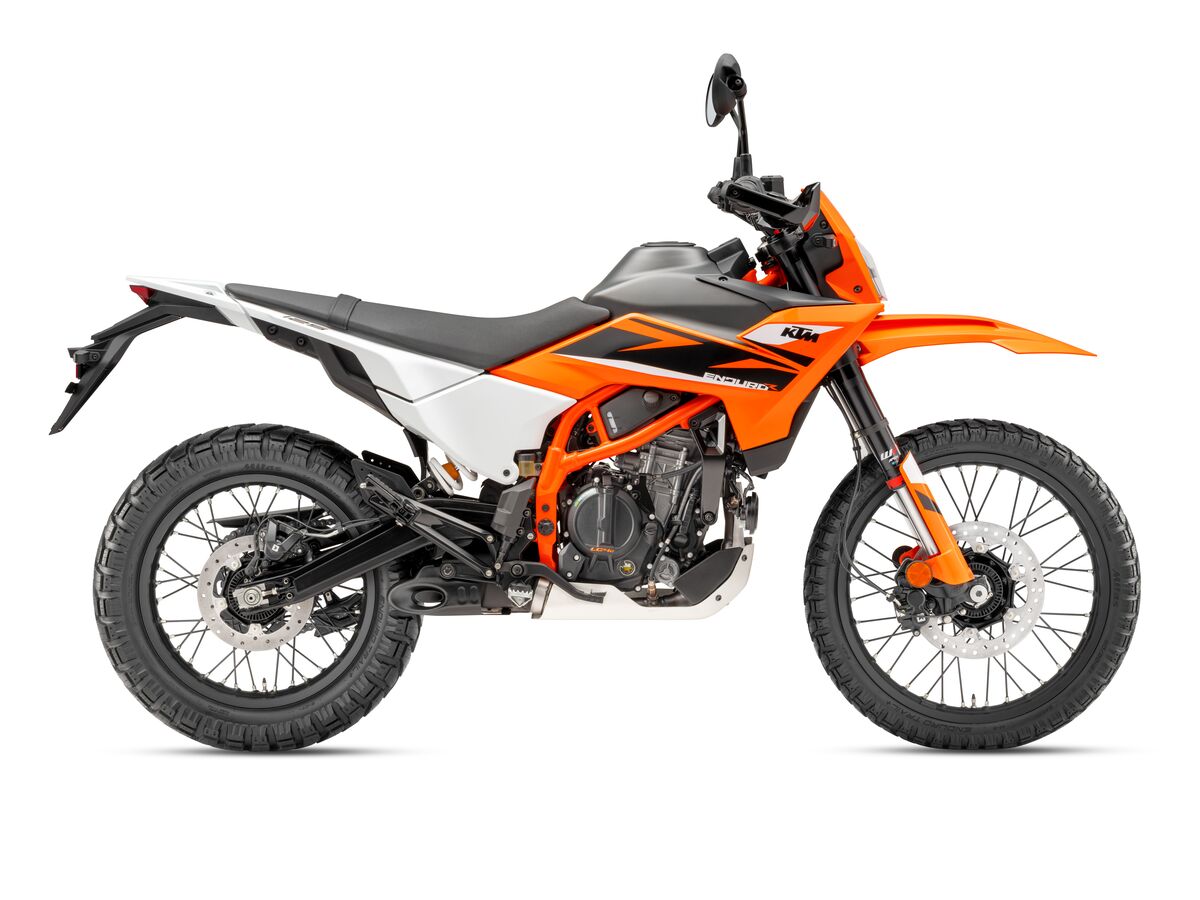

Lightweight handling, ample performance, and massive amounts of fun - that's what the KTM 125 ENDURO R is all about. Packing state-of-the-art rider aids, top-shelf components, and quality, aggressive, enduro-inspired styling, the KTM 125 ENDURO R is ready to tackle any task on any track.
Engine
- Primary drive86:33
- Torque11.5 Nm
- Transmission6-speed
- CoolingLiquid cooled
- Secondary gear ratio51:14
- Power in KW11 kW
- StarterElectric starter
- Stroke47.3 mm
- Bore58 mm
- ClutchPASC slipper clutch, mechanically operated
- CO2 emissions57 g/km
- Compression ratio12.6
- Displacement124.99 cm³
- EMSBosch EMS with RBW
- Design1-cylinder, 4-stroke engine
- Fuel consumption2.4 l/100 km
- Fuel-mixture generationBosch EFI (throttle valve 33 mm)
- LubricationWet sump
Chassis
- Weight (without fuel)152 kg
- Tank capacity (approx.)9 l
- Wheelbase1475 mm
- Front brake disc diameter285 mm
- Rear brake disc diameter240 mm
- Front brakeFloating disk, Bybre radial calipers with 2 pistons
- Rear brakeByBre, single-piston, floating caliper, brake disc
- Chain520 X-Ring
- Frame designSteel trellis frame, powder coated
- Front suspensionWP APEX 43
- Ground clearance272 mm
- HandlebarAluminum
- Rear suspensionWP APEX Split Piston
- Seat height890 mm
- Steering head angle62.9 °
- Rear subframe designSteel trellis frame, powder coated
- Suspension travel (front)230 mm
- Suspension travel (rear)230 mm
- Tyre dimensions (front/rear)90/90; 140/80
- Wheels1.85 x 21"; 2.5 x 18"
