DONGLE

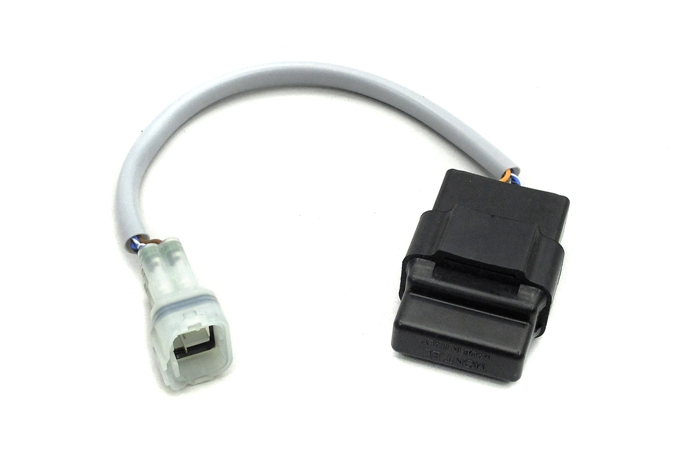

The ABS dongle enables additional features in the ABS control unit and the ECU.Functions on Adventure models:

• ABS-Mode “Offroad”:
  The ABS function is only active on the front wheel (single-channel ABS). The rear wheel can lock at any time without ABS controlling the braking procedure.
• ABS mode "Off":
  The ABS function is switched off; it remains deactivated even after switching the ignition back on. The front wheel and rear wheel can lock at any time without the ABS controlling the braking procedure.
• Function "80 octane" (up to model year 2016):
  Reduced engine power for trips with lower fuel quality. The OFFROAD PACK 60600980000 is additionally required for the 1050/1090 ADVENTURE to be able to use the dongle. Your dealer will have the detailed functional overview for your machine ready for you.

Functions for LC4 models:

• ABS mode 1:
  The ABS function is only active on the front wheel (single-channel ABS). The rear wheel can lock at any time without ABS controlling the braking procedure.
• ABS mode 2:
  The ABS function is switched off; it remains deactivated even after switching the ignition back on (for models from MY 2019 pressing ABS button for 3-5 seconds is needed). The front and rear wheels can lock at any time without ABS controlling the braking procedure.ABS mode 1 is automatically activated when the dongle is plugged in.Leaving the ABS functions activated is recommend on public roads!Your dealer will have the detailed functional overview for your machine ready for you.
